Product Name：CH-XSBC 懸臂梁式稱重傳感器
Product Features：CH-XSBC懸臂梁式稱重傳感器采用優(yōu)質(zhì)合金鋼材質(zhì)，具有高精度、高穩(wěn)定性等特點，安裝簡便、快速，適用于攪拌站、皮帶秤、配料秤和平臺秤等。
Range：5kN（500kg）、10kN（1t）、20kN（2t）、30kN（3t）

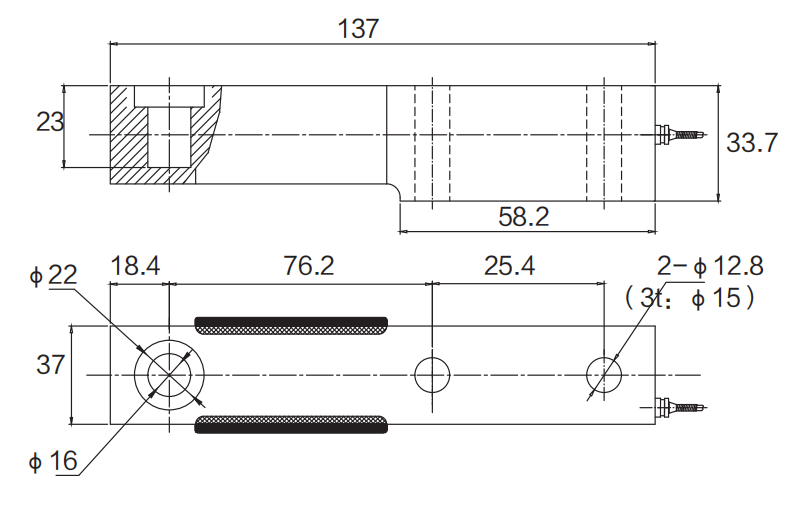

Dimensions：

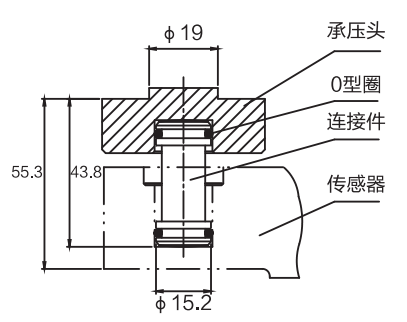

Attachment size：
Specifications：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±1% |
Zero Balance |
±1%F.S |
|
Comprehensive Precision |
0.03%F.S |
Input Impedance |
380±5Ω |
|
Linearity/ Hysteresis |
±0.03%F.S |
Output Impedance |
350±3Ω |
|
Repeatability |
±0.03%F.S |
Insulation Impedance |
≥5000MΩ |
|
Creep |
±0.03%F.S/30min |
Recommended Excitation Voltage |
5～15V/DC |
|
Temp. Effect On Zero |
±0.03%/10℃ |
Compensated temp. Range |
-30℃～+70℃ |
|
Temp. Effect On Output |
±0.03%/10℃ |
Safe Overload |
150%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
