Product name：CH-LP6 Parallel beam sensor
Product features：CH-LP6 aluminum parallel beam weighing sensor is a single point bearing structure, product structure is simple, easy to use.Suitable for belt scale and other force measuring equipment.
Range：1 kN(100kg)、2 kN(200kg)、3 kN(300kg)

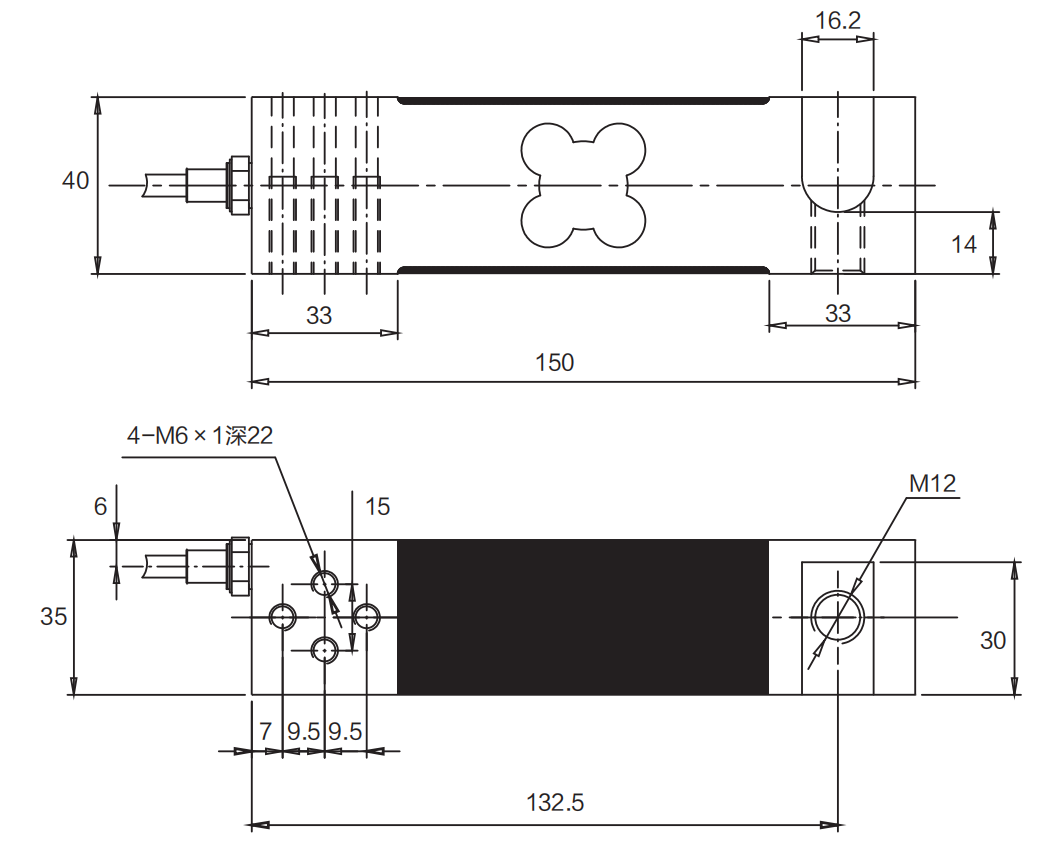

Dimensions：
Specifications：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±10% |
Input impedance |
410±15Ω |
|
Non-linearity |
±0.02%F.S |
Output impedance |
350±5Ω |
|
Hysteresis |
＜±0.02%F.S |
Insulation resistance |
≥5000MΩ |
|
Repeatability |
＜±0.02%F.S |
Allow excitation voltage |
5～15V/DC |
|
Creep |
＜±0.02%F.S/30min |
Compensated temp. range |
-10℃～+40℃ |
|
Temp. effect on zero |
＜±0.02%/10℃ |
Operating temp. range |
-30℃～+70℃ |
|
Temp. effect on span |
＜±0.02%/10℃ |
Safe overload |
150%F.S |
|
Zero balance |
＜±1%F.S |
Ultimate overload |
200%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
