Product name：CH-LP5 Parallel beam sensor
Product features：CH-LP5 parallel beam weighing sensor is a single point bearing structure, the product structure is simple, easy to use.Suitable for weighing equipment or strength measuring equipment of platform scale, packing scale, counting scale.
Range：0.5 kN(50kg)、1kN(100kg)、2 kN(200kg)、2.5kN(250kg)、3kN(300kg)

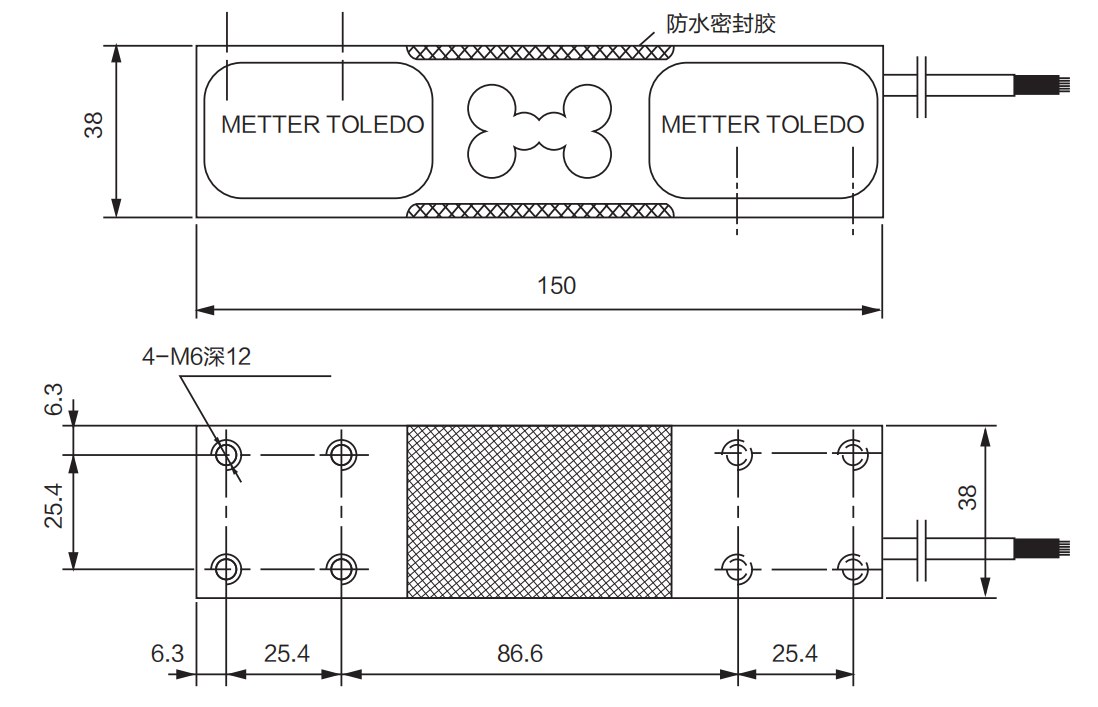

Dimensions：
Specification：
|
Specification |
|
|
|
|
Rated Output |
2.0mV/V±10% |
Input impedance |
410±15Ω |
|
Non-linearity |
±0.02%F.S |
Output impedance |
350±5Ω |
|
Hysteresis |
＜±0.02%F.S |
Insulation resistance |
≥5000MΩ |
|
Repeatability |
＜±0.02%F.S |
Allow excitation voltage |
5～15V/DC |
|
Creep |
＜±0.02%F.S/30min |
Compensated temp. range |
-10℃～+40℃ |
|
Temp. effect on zero |
＜±0.02%/10℃ |
Operating temp. range |
-30℃～+70℃ |
|
Temp. effect on span |
＜±0.02%/10℃ |
Safe overload |
150%F.S |
|
Zero balance |
＜±1%F.S |
Ultimate overload |
200%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
